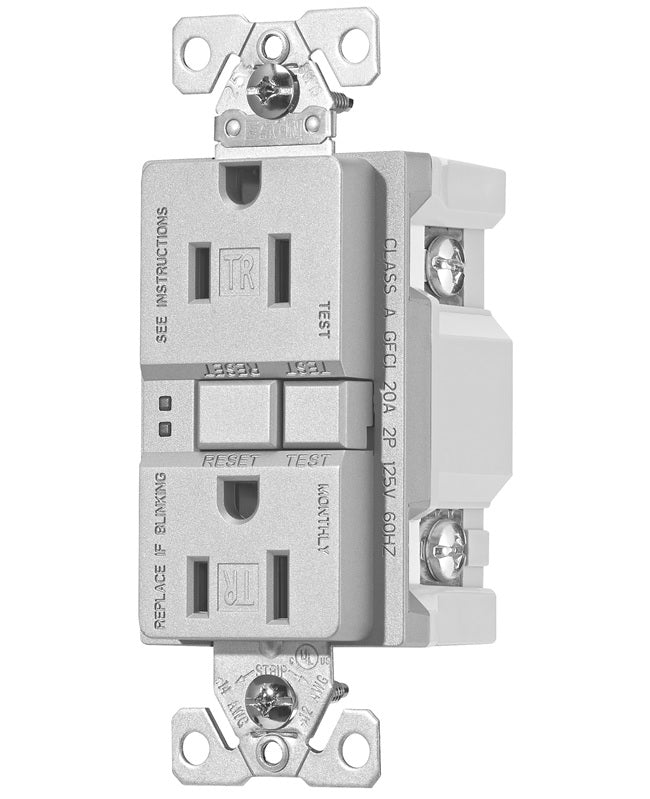

Highlights:
Color: Silver Granite
Duplex Receptacles
Tamper Resistant – Self-Test
Additionally, GFCIs incorporate a safety lock-out function to protect against mis-wired line-load connections and GFCI circuitry damage
Tamper resistant shutters
Performs periodic self-tests to ensure integrity of GFCI protection, if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) 2006 UL943 safety standards
Large visual trip indicator light gives quick notification of a tripped or “end of life” condition
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
Ground termination with back wire clamp provides secure wiring and reduces installation time
Tamper resistant shutters resist the insertion of foreign objects
Line side terminals are backed out and staked for fast installation
Horizontal test/reset button alignment provides larger unobstructed area
Test and reset buttons are color matched to provide superior aesthetics
Tapered back wire openings handle multiple wire sizes and types for applications up to NO 10 AWG solid or stranded wire; when downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection; line-load miswiring protection: GFCI’s will not provide power downstream when wired incorrectly; Tri-combo head terminal and mounting screws
Specifications:
Type: Self-Test, Tamper Resistant
Number of Poles: 2
Voltage: 125 Volts
Number Of Wires: 3
Amperage: 15 Amp
Wire Size: 10 AWG
Frequency Rating: 60 Hz
Material: Nylon
Short Circuit Rating: 10
Nema Rating: NEMA 5-15R
Grounding Style: Automatic
Temperature Rating: -35 TO 66 degree C
Connection: Back and Side Wired
Dielectric Strength: 2000 V
Standards: cULus Listed to UL498 and UL943, File No E60120, Meets All UL943 (GFCI), UL498 (Receptacles), UL498 and applicable CSA Requirements, NOM Certified
Type of Indicators: Large Visual Trip
Overall Length: 4.2
