Reliance Controls 306CRK Generator Power Transfer Kit, 30 Amp, 240 Volt

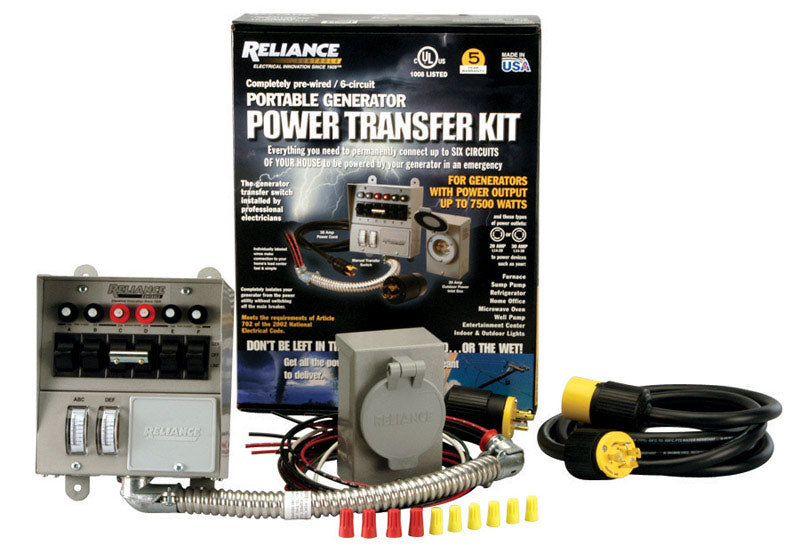

Reliance Controls ProTran 2 Series 306CRK Manual Transfer Switch Kit includes a 306C transfer switch, PB30 power inlet, and PC3010 10′ power cord. The kit is an ideal way to safely provide power from your generator for up to six circuits in your existing load center. Configured for one 20A double pole circuit, two 20A single pole circuits, and two 15A single pole circuits. Easy to re-configure.

Highlights:Transfer Switch:

Completely prewired with color-coded wiring for fast and easy installation
Sixteen-inch flexible conduit whip attaches easily to a knockout on the load center – simply select the branch circuits in the load center that are needed in an emergency and connect them to the Pro/Tran 2 wire leads as instructed in the Installation Instructions (see below)
Non-defeatable (break-before-make) double-throw Utility/Generator toggle switches for each circuit
Utilizes conventional 1-inch interchangeable circuit breakers to protect each branch circuit when the toggle switch is in the Generator position. (The load center breakers protect the circuits when the toggle switches are in the Utility position.)
This model includes one 20A double pole circuit breaker, two 20A single pole circuit breakers, and two 15A single pole circuit breakers
Easily re-configured in the field for up to four 20A and two 30A single pole circuits, or up to three double pole circuits as needed
Allows for installation of AFCI and GFCI breakers as needed
UL Listed for all popular brands and types of breakers, including AFCI and GFCI
Color-coded wattmeters to help balance and manage the generator load
Rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts
Includes a hinged non-metallic cover to protect circuit breakers and toggle switches as well as provide a finished appearance
UL Listed to UL Standard 1008 and is suitable for use in accordance with article 702 of the National Electrical Code ANSI/NFPA 70

Power Inlet Box:

30A NEMA L14-30 configuration
Can be hardwired directly to the transfer switch
Four combination 1/2-inch and 3/4-inch knockouts (one on each side, bottom and back)
Provides generous wiring space and facilitates rough-in
Outdoor NEMA 3R enclosure
UL Listed

Power Cord:

30A power cord with L14-30 plug and connector
Allows up to 10′ between your generator and power inlet box

Specifications:

Maximum Wattage: 7,500 Watts
Voltage: 120/240 Single-Phase
Frequency: 60 Hertz
Rated Amps: 60/30 Amps
Max Generator Input: 30 Amps
Connection Type: Male
Prongs:    Four-Prong
Cord Length: 10′
Wire Gauge: 10 Gauge
Conduit Length:    18
Enclosure: NEMA 1R
Circuits: 4-15A/120V, 1-20A/240V
Circuit Breaker Protection: Each Circuit
Circuits Breakers: 10
