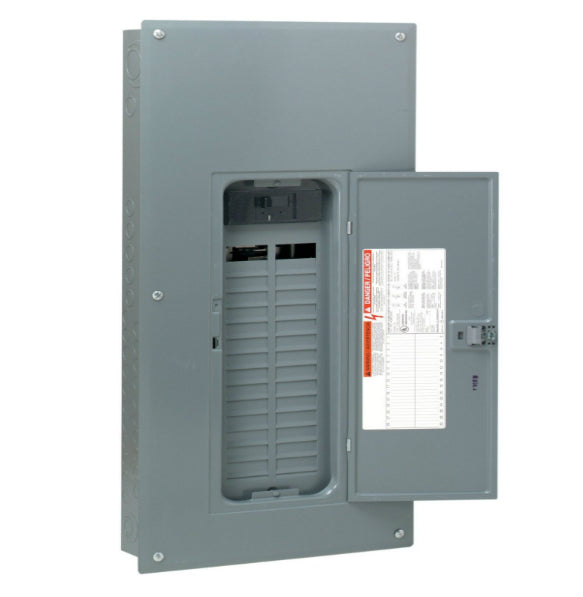

Square D HOM3060M200PC Homeline Main Breaker Load Center, 200 Amp, 30-Space 60-Circuit

Highlights:

Plug-on Neutral ready
Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
Each pole space accepts full-size, tandem or quad breakers
Ground and neutral bars accept up to (3) #10-14 equipment grounds
Includes a combination flush/surface indoor cover
Accommodates plug-on secondary surge arrestor (sold separately)
Overhead/underground feed simply by rotating the device before installing
Single phase
Rated 120/240 VAC and 22,000 AIR short circuit current rating
Automatic flush adjusting cover requires less time to complete the job
Designed with straight-in mains to save expensive cable and time
Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
Thermoplastic interior assembly is among the most rugged in the industry
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
UL Listed
Boxed

Specifications:

Maximum Amperage
200 amps

Maximum Voltage (volts)
120/240

Maximum Number of Circuits
60

Number of Spaces
30

Mounting Type
Plug-In

Indoor and Outdoor
Indoor

Assembled Width
16
